JBL Professional 305P MkII Next-Generation 5" 2-Way Powered Studio Monitor Speak

Product Information:

• LF Driver Size: 127 mm (5")
• HF Driver Size: 25 mm (1")
• HF Driver Type: Soft dome
• Crossover: 1725Hz 4th order acoustic Linkwitz-Riley
• Power Configuration: Bi-amplified
• HF Driver Power Amp: 41 W Class D
• LF Driver Power Amp: 41 W Class D
• Frequency Response: 49Hz – 20kHz (±3dB)
• Frequency Range: 43Hz – 20kHz (-10dB)
• Low Frequency Extension: 43Hz (-10dB)
• Maximum Continuous SPL: 94dB
• Maximum Peak SPL: 108dB
• Maximum Peak Input Level: +6dBV / +20.3dBu (-10dBV / +4dBu)
• System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
• Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
• Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Coverage Pattern: 120° x 90° (horizontal x vertical)
• HF Trim Control: -2dB, 0dB, +2dB
• Boundary EQ: LF Shelf @ 50Hz
• AC Input Voltage: 100 – 240VAC (±10%), 50 / 60Hz

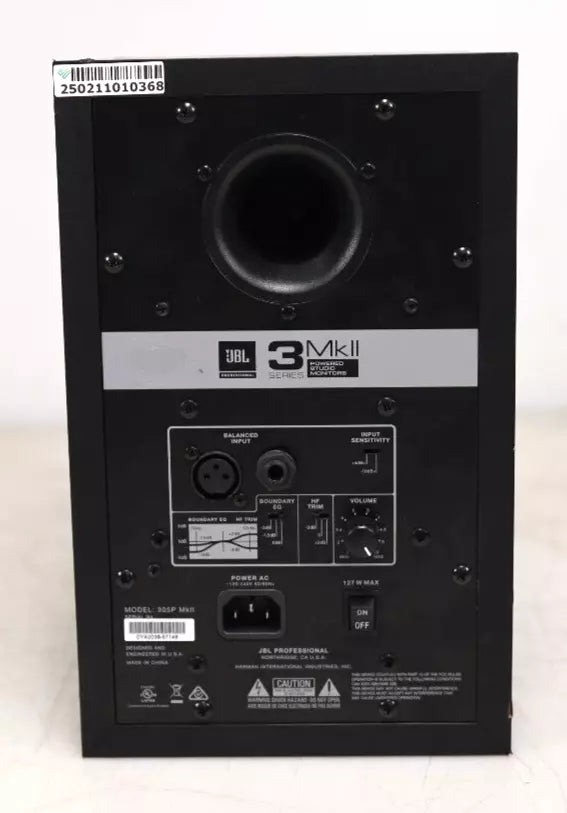

• Ports: Please view our pictures for details
